The giants guard vast hoards of treasure.... ...but if you get too close, they will crush you!!! Of these four great giants, Uranus is probably the most hospitable.

WHY GO TO URANUS??
Uranus Factoids Discovered by Herschel. Uranus is the seventh planet from Sol and the third-largest and fourth-most massive planet in the Solar System. Sir William Herschel discovered Uranus on March 13, 1781, the first discovery of a planet with a telescope. Visible without a Telescope.  Though undiscovered till relatively recently in human history, Uranus is sometimes visible to the unaided eye. At opposition, Uranus is visible to the naked eye in dark, non-light polluted skies and becomes an easy target even in urban conditions with binoculars. Named by Bode. Since Herschel discovered this planet, he considered naming it after his sponsor, King George III. However, Johann Bode (recall Bode's Law), suggested "Uranus", the mythological father of Saturn and grandfather of Jupiter. Naming the Moons.  By 1851, Herschel's son Sir John Herschel had became a well known astronomer; and he gave the four then-known moons their current names. He departed from traditional mythological names and turned to the works of Shakespeare and Pope. He named Titania and Oberon (spotted by William Herschel on March 13, 1787) for the king and queen of the fairies from Shakespeare's "A Midsummer Night's Dream". Ariel and Umbriel (discovered by William Lassell in 1851) were spirits in Pope's "The Rape of the Lock". In 1948, Gerard Kuiper  (recall Kuiper Belt) discovered Uranus's last large moon and named it Miranda from Shakespeare's "The Tempest". Uranus has 27 known natural satellites. Orbit Uranus revolves around the Sun once every 84 Earth years with an average radius of about 20 AU.	Uranus might be the best place in the solar system to get He3, a helium isotope. This substance is rare on Earth, but it's plentiful in the gas giants. If He3 became abundant on Earth, then fusion energy would become viable, and plentiful, "green" energy would become a reality.  Primary Assumption - Economic Incentive. A significant factor for large scale interplanetary travel will be that He-3 will likely prove to be an economic incentive to travel to the gas giant planets of our Solar System. Sunlight will not provide sufficient power for habitats orbiting the outer planets such as Jupiter and beyond. Fortunately, the gas giants have gigantic reservoirs of He-3 which could then be used to power the same habitats which house the people mining He-3 from the gas giant atmospheres. Energy and Value from He-3 He-3 can combine with deuterium (H-2, an isotope of hydrogen) to give off a proton and He-4 (normal helium) as well as a good energy return. This nuclear fusion reaction produces plentiful, "clean" energy without the hazardous side effect of neutron radiation common to other types of fusion reactions or other radioactive byproducts of today's fission-powered plants. While He-3 is extremely rare on Earth, eons of solar wind bombardment has made Helium-3 (He-3) abundant on the lunar surface. HOWEVER, mining He-3 on Luna would require enormous infrastructure on our Moon's surface (See Mining the Sky... by John Lewis, p.137-141.)  CONCLUSION: While Luna may be close, and gas giants may be distant; it still might be cheaper to mine He3 from the far away giants, in particular, Uranus.  It's closer than Neptune and safer than Jupiter or Saturn.
TABLE-1: FUSION OVERVIEW

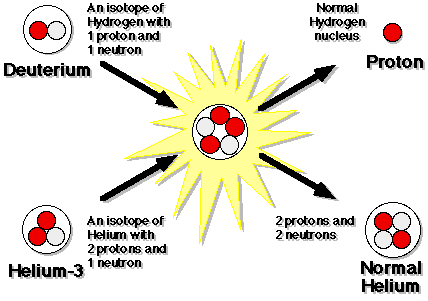

EARLY ROCKET FUSION CONCEPTS Project Orion USAF proposed circa 1960. Destination: Interplanetary. Nuclear pulse spaceship directly propelled by a series of nuclear fusion explosions behind the craft. Use miniature Hydrogen bombs. Project Daedalus Proposed by BIS circa 1980. Destination: Barnard's Star. Interstellar fusion rocket ignite pellets of a deuterium/helium-3 mix with electron beams. Such beams would be powered by the plasma exhaust. Detonate 250 pellets/sec and direct resulting plasma with a magnetic nozzle. He-3 is rare on Earth; therefore, mine it from Jupiter with blimp bound robotic factories.  Project Icarus Proposed by TZF circa 2010. Destination: Alpha Centauri stellar system (3 stars). Nuclear pulse propulsion igniting packets of deuterium and He-3.  Mine He-3 from Uranus. FUSION INDUSTRY ASSN (FIA) FIA has over 40 fusion member companies (a few are listed below). They have collectively investigated many different ways to make and use fusion nuclear reactors both with and without He-3. General Atomics Fusion Energy Education Lawrence Livermore National Laboratory Inertial-Confinement Fusion Princeton Plasma Physics Laboratory fusion energy University of Wisconsin Fusion Technology Institute Commonwealth Fusion Systems Helion Energy Company International Thermonuclear Experimental Reactor (ITER)	FUSION MASTER CLASS by Dr. Matthew Moynihan A few of many fusion topics on Matt's extensive site include: Pinches "Pinch" (i.e., compress) one end of plasma path with goal of fusing plasma particles into Helium atoms. Mirrors Magnetic Mirror: Pinch both ends of straight plasma path to reflect ions between them to gain more time to achieve fusion. Biconic Cusps Arrange two dipole magnets in parallel with opposing polarity. Resulting magnetic field contains a "biconic cusp" used to contain and compress plasma. Tokamaks Tokamak uses powerful magnetic field to confine circulating plasma in a circular, torus shaped path to eventually fuse particles. ICF ICF initiates nuclear fusion by using a huge laser bank to quickly super heat small pellets of deuterium (2H) and tritium (3H). PJMIF PJMIF compresses magnetized plasma to fusion conditions with a spherical array of plasma guns. Thought Experiment speculates that  plentiful Helium-3 would improve fusion options  for some of above fusion methods as well as several others.
More Factoids Distinctive Color: Third most abundant element of the Uranian atmosphere is the hydrocarbon, methane (CH4) which give's Uranus its distinctive cyan color. [Most and 2nd most abundant elements are hydrogen and helium respectively.] Planetary rings:  Uranus has a faint planetary ring system, the second ring system to be discovered in the Solar System after Saturn's. William Herschel claimed to have seen rings at Uranus in 1789. During the centuries since, rings at Uranus had been largely discounted; however, recent discoveries indicate ironic agreement with his findings. Axial Tilt Differs  Perhaps the most unusual feature is its axis of rotation. Unlike any other planet, Uranus lies on its side with an axial tilt of 98 degrees with respect to the plane of the solar system. Other planets rotate like tilted spinning tops; however, Uranus rotates more like a tilted rolling ball. Why this strange axial tilt?? Some scientists speculate an Earth protoplanet collided with Uranus many eons ago. Size: Uranus' mass is roughly 14.5 times that of the Earth, making it the least massive of the giant planets, while its density of 1.27 g/cm³ makes it the second least dense planet, after Saturn. Composition: Ice Uranus is made primarily of various ices, such as water, ammonia, and methane. The total mass of ice is between 9.3 and 13.5 Earth masses. Hydrogen and helium constitute only a small part of the total, with between 0.5 and 1.5 Earth masses. The remainder of the mass (0.5 to 3.7 Earth masses) is rocky material. For more about Uranus.	The best place for He-3 won't be Luna, Earth's moon. Instead, our quest for plentiful supplies of helium-3 will take us to the gas giants, where helium-rich atmospheres are very similar in chemical composition to the sun. Gas Giants The biggest gas giants are Saturn and Jupiter. They are both closer then Uranus, and they definitely have much more He3. However, neither Saturn nor Jupiter would be the optimal choice; they both have huge masses with strong gravity with high escape velocities. Also, they are both very active planets with lots of radiation hazards. As for Neptune, it is similar in size as Uranus with similar escape velocity (slightly higher), but the Neptunian system is much farther then Uranus. (30 AUs vs. 20 AUs for Uranus). Of the four gas giants, Uranus is much calmer with the lowest escape velocity. Disregarding travel time, Uranus is our first choice.

TABLE-2: POTENTIAL HELIUM-3 IN GAS GIANTS

Planet	Dist. to Sol	Planet Mass	Escape Velocity	Est'd Mass of Helium-3	Est'd Energy Capacity	He-3 from Uranus Since Uranus has the lowest escape velocity of the four gas giants, it might be the optimal mining site for helium-3. Mining operations would require a mix of Artificial Intelligence (AI) and human activity. Thus, practicality requires human settlements in the quest to mine He-3. There are several alternatives for this. Natural satellites in the Uranus system could serve as bases for human settlements. An alternative is to place floating cities in its atmosphere. By using gigantic balloons filled with hydrogen, large masses suspend underneath at roughly the Uranus altitude closest to Earth gravity. A more practical alternative would involve a habitat along the lines described by Dr. O'Neill, in his book, High Frontier. Such habitats could be manufactured in a near Earth, solar orbit, then moved to orbit in the Uranus system. Such habitats could be constructed and lived in during the transfer orbit from Earth. They could be very comfortable; a cylindrical habitat could even simulate gravity with the right amount of longitudinal spin. From a readily available supply of He3, they could harvest plentiful energy.
	(Earth= 1.0 AU)	(M♁ = 1 Earth mass)	(Earth's e=11.2 km/sec)	(mT = metric Tonne)	(1 yr = Earth ann'l use)
Jupiter	5AU	318×M♁	59.5 kps	350×1012mT	65×109 yr
Saturn	10AU	95×M♁	35.5 kps	104×1012mT	19×109 yr
Uranus	20AU	15×M♁	21.3 kps	16×1012 mT	3×109 yr
Neptune	30AU	17×M♁	23.7 kps	19×1012 mT	3.5×109 yr

TABLE-3: GETTING THERE

Several Feasible Technologies for interplanetary travel are demonstrated in the movie "2001: a Space Odyssey". In this 1968 epic science fiction film by MGM (directed by Stanley Kubrick and written by both Kubrick and Arthur C. Clarke, eminent scientist and author), the ship, Discovery One, travels from Earth to Jupiter with two astronauts manning the ship and three scientists in cryogenic hibernation. Transporting humans for years inside a small vessel is overwhelmingly impractical (cryogenic or conscious). Even though the two astronauts had the famous HAL as a diversion (HAL was an on-bound AI system which went rogue to kill all but one of the on board humans), 2.7 years (typical transfer orbit flight time to Jupiter) is way too long to live in a zero-g environment. The 16+ years to travel to Uranus would be out of the question. Spending years in cramped quarters at zero-g would be far worse then prison. Such a trip is feasible but not very practical.
However, practicality increases substantially for a vessel which offers Earth like gravity and comfortable living quarters for over a million occupants. Such a vessel is described by O'Neill in his book, "High Frontier". In his book, "Mining the Sky", John Lewis describes how such enterprises can make handsome profits.

HOHMANN TRANSFERS TAKE YEARS. Current Technology vs. Achievable Technology. Today, current technology spacecraft use transfer orbits to travel to Uranus or other planets for flight times of several years. Fortunately, transfer orbits don't require much fuel.  Unfortunately, their lengthy zero-g, flight durations are only practical to transport Artificial Intelligence (AI) entities (i.e., robots). Achievable technology could provide shorter duration, g-force flights.  A Manhattan Project type effort could readily achieve space borne, particle accelerators to produce constant acceleration to destinations throughout the Solar System; thus, humans could routinely travel to the planets within weeks or even days. Current Technology Hohman transfers are a special case of transfer orbits (least fuel required). Following table uses the simple formula for Hohman transfers to compute typical travel times from Earth's orbit to each of the giants. AU = 149,597,870.7 km tYr = (1+aAU)3/2 5.656 Current technology trips would take too long for any commercial enterprise to yield profitable results. Thus, trips to any of the gas giants will never become routine if travel times take years. Recurring travel by humans would have to concentrate on Jupiter in spite of the enormous dangers involved with Jupiter's very high gravity.	Dest.	Semimajor Axis (a)		Travel Time (t)
	Planet	AUs	kms	Days	Months	Years
	Jupiter	5.2	777.9×106	997	32.8	2.73
	Saturn	9.54	1,427.2×106	2,210	72.6	6.05
	Uranus	19.18	2,869.3×106	5,855	192.4	16.03
	Neptune	30.06	4,496.8×106	11,181	367.3	30.61
	Given	Observed		t = (1+a)3/2 5.656

TABLE-4: DIFFERENT VALUES FOR G

Different Units of g g ≈ 10 m/sec sec ≈ 864 km/sec day ≈ 0.5 AU/day day ≈ 0.289%c day Kilometers per second (km/sec) directly compares ship's inflight velocity to escape velocities of Earth (11 km/sec) and other planets. Escape velocity for Uranus is about 21 kps. Astronomical Units per day (AU/day) is convenient because distance to nearby planets is conveniently measured in AUs and g-force flight times will take days. Per cent light speed (%c) reassures us that relativity is not a factor for g-force accelerated interplanetary flights. For example, ship doesn't reach one percent of light speed (1% c) until after three days of g-force acceleration. For routine travel between Earth and gas giants, assume a future propulsion technology where interplanetary trip takes days versus decades. Given that extraordinary achievement, energy gathering enterprises could bypass Jupiter and Saturn and travel on to Uranus to for a more hospitable environment. Accordingly, Thought Experiment (TE) assumes our spacecraft to constantly accelerate at g-force for extended periods. Thus, TE assumes for every second of powered flight, spacecraft applies sufficient propulsive force to increase velocity 10 meters per second. For extended durations, it might become convenient to express the g value with different units. (See table at right.) TE further assumes that space borne particle accelerators could provide the propulsion required for reliable g-force throughout extended flights. Since earth bound accelerators have been with us for many years, TE assumes such propulsion as achievable.

A transfer orbit to Uranus will take years;  however, g-force propulsion can reduce trip time to a few 2 weeks.

TABLE-5: G-FORCE FLIGHT PROFILE

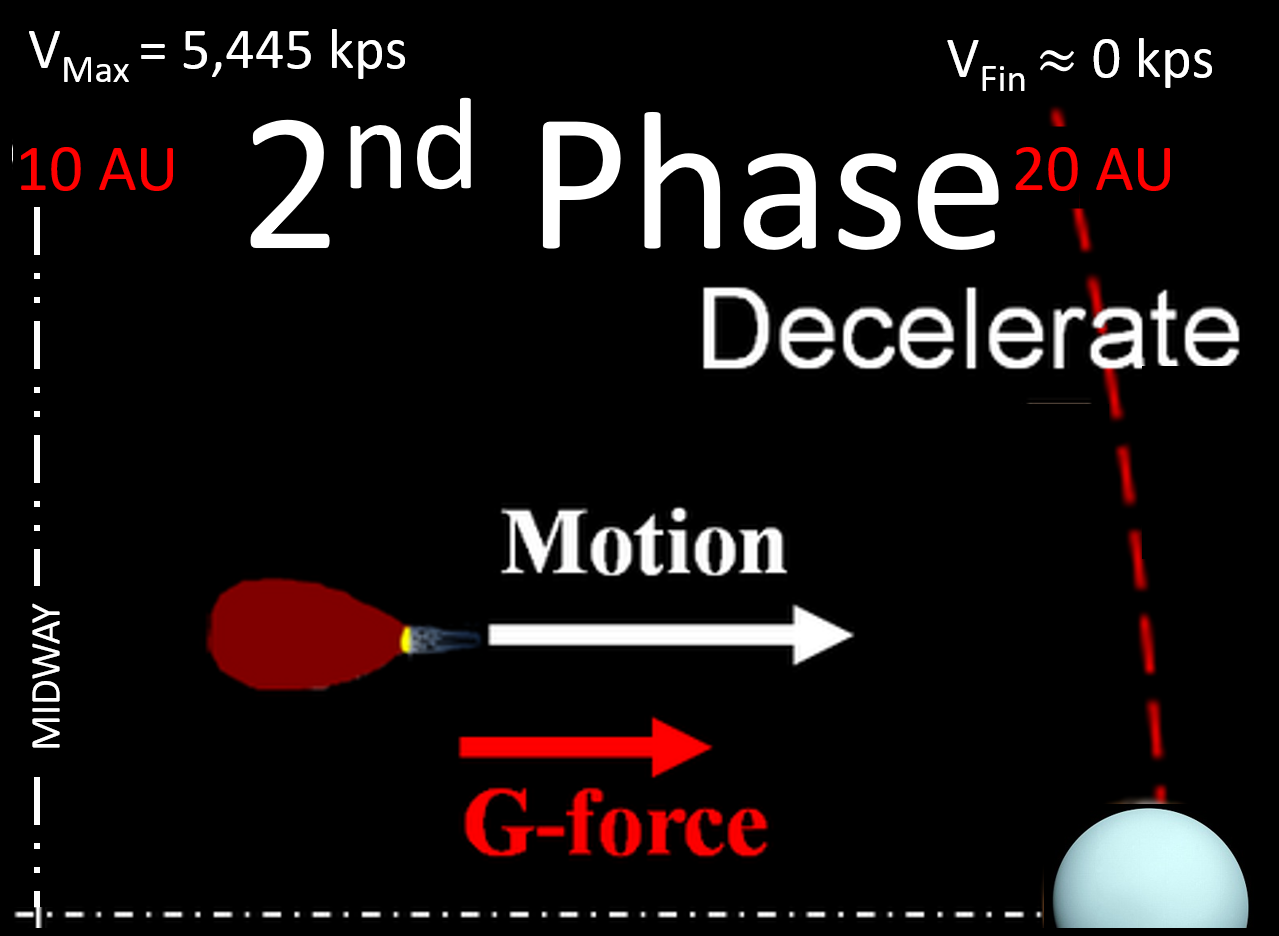

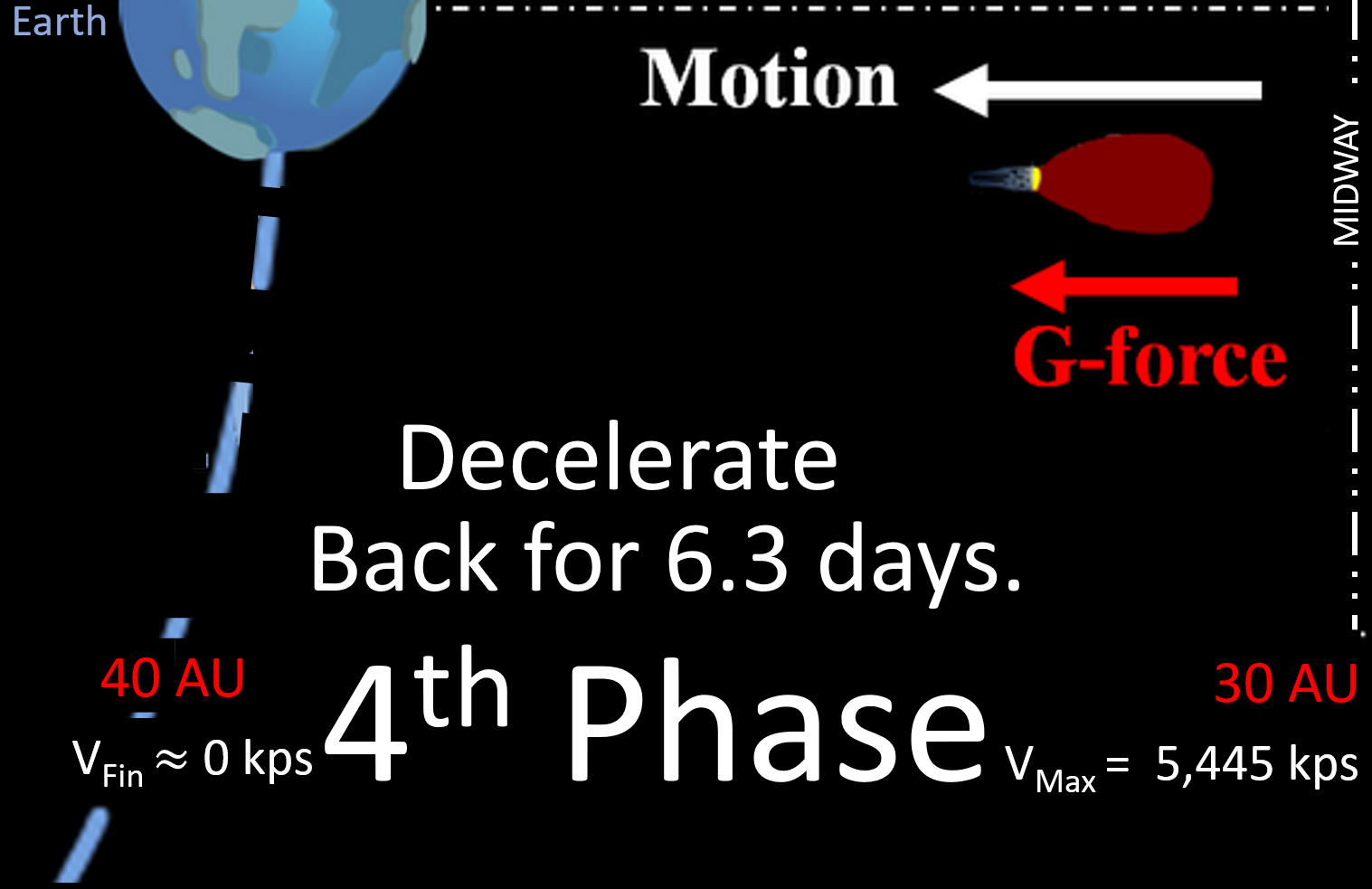

Earth	Departure Leg			Uranus	Return Leg			Earth	Departure Leg Phase. 1: Accelerate to Midway.  Constant g-force accelerates vessel at 864 kps/day for a very fast  5,445 kps (about 2% light speed, .02c) at midway. Phase.2:   Decelerate to Destination. Vessel must slowdown. Turn the vessel 180° to reverse direction of propulsive g-force. Return Leg Phase. 3: Accelerate Back to Midway.  As in Ph. I, TE assumes achievable technology will create particle accelerator for constant flow of high speed particles. Phase. 4: Decelerate Back to Departure. For constant g-force, deceleration duration and distance must equal that of the acceleration phases.
Begin	Phase 1	M I D W A Y	Phase 2	Uranus	Phase 3	M I D W A Y	Phase 4	End
Phase Distance: dP	10 AU		10 AU	Dest	10 AU		10 AU	ASSUME: dP = 10 AU
Phase Time: tP	6.3 Days		6.3 Days	Dest	6.3 Days		6.3 Days	tp = √( 2 × dP g ) ASSUME: g = 0.5AU/day²
Final Velocity: VFin	5,445 kps		0 kps	Dest	5,445 kps		0 kps	Let g = 864 kps/day VFin = g × tP For Phases 2 and 4:  VFin = V0 - g × t

TABLE-6: FUEL REQUIREMENT, %TOGW

Constant g-force throughout the flight requires a constant transformation of mass to energy.
Thought Experiment models this fuel consumption according to following assumptions.

On site operations.

After arrival at Uranus, spacecraft could drop off a habitat full of humans, robots, equipment, and supplies needed to harvest vast quantities of He3.  Hopefully, following spacecraft will arrive on a recurring schedule to establish a continuing cycle of pax/cargo spacecraft much like the airlines of today.

---

1. Exhaust Particle's Velocity (VExh). Assume VExh to be .866c (86.6% light speed). At this relativistic speed, exhaust particle mass doubles from its original size at ingest. 2. Daily Difference (Δ). At the speed/size of these exhaust particles, previous work enables us to further assume one day of g-force acceleration requires fuel consumption of 0.166% of the spaceship's mass. Thus, Δ = 0.166%GW/day. 3. Efficiency Factor. Design flaws and peripheral energy requirements will necessitate additional fuel consumption. Since we have no way of knowing how efficient our spaceship will be, we arbitrarily assume same quantity of fuel for peripheral needs as for propulsion needs. Thus, 0.166% of ship's daily GW is consumed for propulsion and same amount is also consumed for peripheral needs.  Thus, we'll double the daily difference; thus, 2Δ is daily consumed. 4. Daily Gross Weight (GWt). If spacecraft's initial Gross Weight (GW0) is 100%; then, GW at end of day 1 (GW1) is 1-2Δ = 100% - (2×.166%) = 99.668% of GW0 (also known as Takeoff Gross Weight (TOGW)). For time (t) in cummulative days of g-force powered flight: GWt = (1-2Δ)t 5. Fuel Requirement as Percentage of TOGW (%TOGW). To determine quantity of fuel required for a multi-day space flight, use the formula: %TOGWt = 100% - GWt .		Phase 1	Phase 2	U R A N U S	Phase 3	Phase 4	E A R T H
	Phase Time (tP)	6.3 Days	6.3 Days		6.3 Days	6.3 Days
		See TABLE-5: G-FORCE FLIGHT PROFILE			tP=√(2 × dP/g)
	Cumm Time (tC)	6.3 Days	12.6 Days		18.9 Days	25.2 Days
		Running total of flight time.			tC=tP + tC-1
	Gross Weight (GWt)	97.9%	95.9%		93.9%	92.0%
		Ever decreasing GW.			GWt = (1-2Δ)t let t = Cumm time (tC)
	Percent Takeoff Gross Weight (%TOGW)	2.1%	4.1%		6.1%	8.0%
		Ever increasing %TOGW.			%TOGWt= 100% -GWt

SIDEBAR: SIR WILLIAM HERSCHEL

"Man Who Discovered Uranus"

Musician Born. William Herschel, one of history's greatest astronomers, was born at Hanover, on November 15, 1738. His father, Isaac Herschel, was an accomplished musician but not wealthy. Isaac left few worldly goods to his heirs, but he passed on genius to William and William's younger sister, Caroline. Later, Caroline faithfully chronicled her famed brother's life. This modest family circle dispersed at the outbreak of the Seven Years' War in 1756. The French invaded Hanover, then part of the British dominions. Young William Herschel had become a regular in the regimental band of the Hanoverian Guards, but circumstances compelled this young musician into combat in the battle of Hastenbeck. After this disastrous battle, he deserted his unit and fled to to England. Many years later, Herschel became the famous astronomer, and King George the Third pardoned him. Became Astronomer. In England, Herschel's studies progressed from music to mathematics to astronomy; eventually; Herschel come to spend every spare moment on astronomy and making his own telescopes. In 1774, William first glimpsed the stars with his own instrument. Thereafter, he used his telescopes every night the weather allowed. Caroline Herschel - Invaluable Assistant. Herschel frequently continued his observations throughout a long winter's night from dusk till dawn accompanied by Caroline. While William attended to his daily labors, Caroline carefully transcribed the observations made during the previous night and prepared everything for observations to follow on the ensuing evening. Discoverer of Uranus After surveying thousands of stars, he noticed a different "star" in 1781. This object had a disc with a definite, measurable size, which was totally different. He further noted a definite shift of its position relative to the stars. Thus, he initially reported it (on 26 April 1781) as a "comet". However, Bode concluded that its near-circular orbit was more like a planet than a comet. The object was soon universally accepted as a new planet. Royal Astronomer. King George III heard of Herschel's achievements and invited him to Windsor. Herschel brought his famous telescope to exhibit the new planet to the King. After this meeting, Herschel could do exclusively astronomy for the rest of his life. King George granted Herschel the title of Royal Astronomer with many admirable entitlements including an adequate salary for Caroline. Freed from his other duties, Herschel immediately began constructing the great telescopes at Windsor. For more than thirty years, he and his faithful sister continued their rigorous observation schedule. Their many Royal Society papers described numerous objects such as double stars; nebulae and clusters; objects first revealed to human gaze due to their efforts. However, the discovery of Uranus remained his most noteworthy achievement. Herschel married late in life; yet, he lived to see his only son, Sir John Herschel, also become a famous astronomer. After the elder Herschel died in 1822, his illustrious sister Caroline returned to Hanover, where she lived for many years with much deserved respect. For more about Herschel.
