Wednesday, January 03, 2007

TO NEIGHBOR STARS


CONTENT
Alpha Centauri (AC) is Sol's nearest neighbor.
AC is a cluster of three stars about 4.3 light years (LYs) away.

G-force flights to these nearby stars will require several years.

Our thought experiment notionalizes an interstellar spaceship with an particle accelerator propulsion system which constantly accelerates the vessel at g-force. Such a spacecraft could get us to nearby planets within days AND also simulate near Earth gravity throughout the trip; but interstellar travel would take much longer.

Recall that interplanetary trips require following g-force profile .
---G-force accelerate for a few days to the midpoint of the trip.
---Precisely at midpoint, reverse direction of spacecraft so the ship's exhaust vectors now points opposite direction of flight.
---G-force decelerate for the remaining half of journey until ship reaches destination.
Thus, after one day of g-force travel, a vessel could achieve velocity of 847.8 kilometers per second (kps) about .283 percent of the speed of light, c.
g=9.8065m/sec²×86,4000sec/day=847.8kps/day
g=847.8 kps/day × c/299,792kps =0.283%c/day
TE chooses to call this quantity, Δ ( = g ×1 day= 0.283%c), the daily difference.

Interstellar travel requires a new profile. Consider following points:
1. Acceleration to Midpoint is impractical. Interplanetary distances are just a few AUs; thus, g-force acceleration will take just a few days. However, midpoint to the nearest star, AC, is over 2 LYs, over 120,000 AUs; this takes years of g-force propulsion which could easily consume the ship's weight in fuel.
2. Interstellar G-force Velocities approach c, light speed. In contrast, interplanetary g-force flights never even approach c.  For example, a g-force flight to Mars will usually require less than three days of acceleration and will achieve max velocity less then 1%c.
3. Special Relativity Theory maintains that any observer always measures c at 299,792 kps regardless of observer's own velocity. Numerous published works in both theory and experiment continue to confirm that no object with mass can exceed c; but continuing acceleration will take you closer and closer to that relativistic limit.

Consider cases where a g-force vessel accelerates for 100 days, 200 days or any number of days. After any given duration, let the g-force vessel release a module with no propulsion; that module stops accelerating and maintains velocity at time of release.  An occupant on that module will observe the g-force vessel accelerating away; as a matter of fact, TE assumes the module observer will always observe a velocity increase of .283%c after an additional day has elapsed.
 A year of constant g-force acceleration can achieve significant fraction of light speed.

For longer durations, "t × g" no longer works. EXAMPLE: After one year of g-force propulsion, V1Year= 365.25 days ×Δ = 1.033c, an impossibility!!! Resulting velocity exceeds c, which contradicts Einstein's Special Theory of Relativity.

Thus, previous work proposes the Remainder (R) concept to determine g-force velocities. After one day, an Earth bound observer measures g-force vessel velocity at .283%c with remaining velocity of 99.717%c till the speed of light. Thus, R = c (1-Δ).
After any given number (n) of g-force days of travel, above module is released. After another day (n+1), TE assumes that module occupant will observe g-force vessel increase velocity to .283%c with a R of 99.717%c until light speed.
Furthermore, TE assumes that Earth bound observer can use Remainder (R) exponentials to predict velocity for any number of g-force days. Following table predicts vessel velocity after one year (365.25 days) of g-force.
Vt=c [1-(1-Δ)t]=c [1-(1-.002826)t]
V1Yr=c [1- R365.25]=  c [1 - .997174365.25]
V1Yr=c[1-.997174365.25]= c [1 - .3552]
V1Yr=c [.6448]= 64.48% c
EXAMPLE: After one year of g-force propulsion,
an Earth bound observer measures velocity of 64.5% c.
For Interplanetary Destinations:
Traditional Newtonian Agrees with Relativistic Einsteinian
Newton formulas: Vt = t × Δ and  dt = t × g  work well for the special case of extremely slow velocity, the portion of the speed spectrum where humanity lives.
EXAMPLE: For a trip to Mars, a vessel might need two days of g-force acceleration to reach midway of the journey.  After  two days of g-force propulsion, interplanetary g-force spaceship velocity is still less then 1% of light speed.
 Vt = 2 days × .283%c/day = .566c

We see the Einsteinian velocity formula Vt = c [1-(1-Δ)t] gives almost the same velocity for two days of g-force.
V2 = c [1-(1-.002826)2] =  0.564%c
ANOTHER EXAMPLE: A Kuiper Belt Object (KBO) destination might need 10 g-force days to reach midpoint.
Newtonian: V10=10 days × .283%c/day=2.83%c
Einsteinian: V10=c [1-(1-.002826)10]=2.784%c
We see that Einsteinian and Newtonian methods remain close for small durations of g-force acceleration.
For Interstellar Destinations:
Traditional Velocity Values Diverge from Relativistic
If we expand g-force duration from days to years, we see a wide divergence between Newton and Einstein.
 After one year of g-force acceleration, we see following difference:
Newtonian:V365=365 days × .283%c/day=103.3%c
Einsteinian:V365=c [1-(1-.002826)365]=64.4%c
Newtonian value is clearly wrong; nothing exceeds c.
Previous work leads TE to the Einsteinian method.
After two years of g-force acceleration, we see greater difference:
Newtonian:V730=730 days × .283%c/day=206.6%c
Einsteinian:V730=c [1-(1-.002826)730]=87.3%c
Newtonian is clearly wrong; vessel cannot exceed light speed.  Previous work leads TE to assume Einsteinian method produces a reasonable g-force velocity.

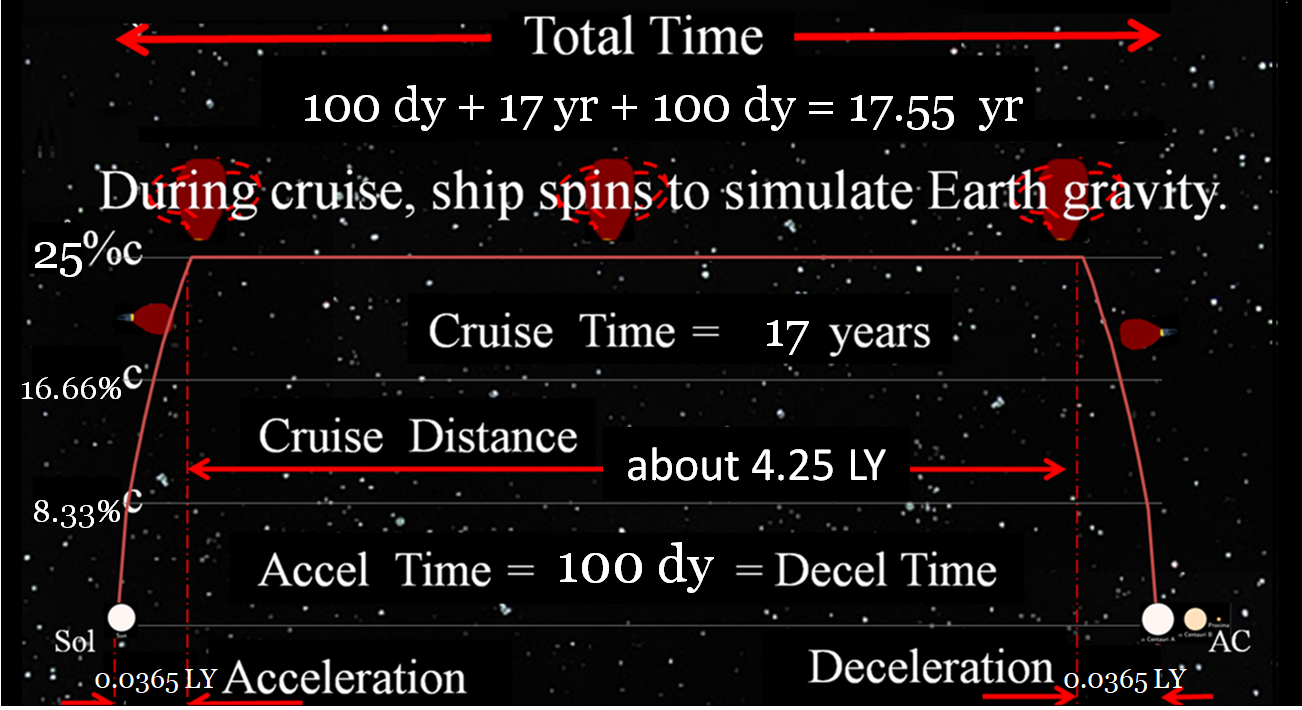

Interstellar Voyages Need a Cruise Phase.
G-force acceleration to the midpoint between stars would take too long;  a starship would easily consume well over 100% of its mass in fuel during the multi-year voyage.
Thus, interstellar flights need three phases:
1) ACCELERATION brings ship to a near light speed velocity which facilitates a reasonable cruise duration. If our spaceship accelerates at g-force for 323 days;
tAcc =  .9 year = 323 days
it'll achieve a velocity of .6 c.
VAcc = c[1-(1-Δ)tAcc]
VAcc= c[1-(1-.002826)323] = .6c = 103.887AU/day
It will consume perhaps 25% of available fuel (depending on design efficiencies and exhaust particle velocity). However, acceleration distance
dAcc = c×tAcc +VAcc

ln(1-Δ)
dAcc = c × 323dy +103.887AU/day

ln(1-.002826)
= 19,269AU = .3 LY
will only be about .3 light year (LY), not even close to the Oort Cloud which borders our Solar System at about 1 LY from Sol.
2) CRUISE. Interstellar flights will need a lengthy constant velocity duration to conserve fuel. This profile assumes a cruise phase at .6c for several years. Earth bound observers will see the cruise portion take several years; but onboard crew and passengers will observe the trip taking much less time due due to relativistic time dilation. Maintaining Earth-like environment will be very important during this multi-year period; however, humans will have been living in asteroid habitats (which rotate to simulate Earth gravity) for many decades and probably generations prior to going interstellar. Thus, going interstellar will require some midflight reconfiguration for the cruise portion.
3) DECELERATION. About .3 LY from destination, spaceship must decelerate from .6c to an operational velocity. Assuming consistent g-force, this will take same duration as the acceleration phase (323 days) and another large portion of fuel.
Propulsion time sums durations for acceleration (tAcc) and deceleration  (tDec); propulsion needs fuel to apply g-force. However,  cruise duration is excluded since no propulsion is applied during this lengthy phase.

TRADEOFFS. Duration of 323 days for acceleration/deceleration was chosen arbitrarily. Flight planners can choose any duration as long as they observe the tradeoffs between fuel availability and total trip time.
  • Longer propulsion durations means faster cruise velocity and shorter trip time.
  • Shorter propulsion times means less fuel expended. If ship runs out of fuel, then vessel, cargo, crew and passengers are stuck at that velocity. While TE assumes particle accelerator propulsion system gives us plenty of margin for interplanetary flights, this margin quickly disappears for interstellar travel. The distances are too vast and the flight durations are too great; thus, we cannot get by with the convenient heuristics used for interplanetary g-force.

Consider following interplanetary flight assumptions:
  1. For interplanetary flights, TE assumed that half the ship's mass could easily suffice for efficient particle accelerators to provide g-force for entire flight. For interstellar flights, constant g-force propulsion will easily consume more fuel then 100% of ship's mass.
  2. Thus, the Cruise phase proves to be an essential method to greatly reduce fuel requirement.

Simulate Earth Gravity Throughout Voyage.
During g-force acceleration, a spaceship can attain enormous speeds and simulate earthlike gravity.
During cruise portion of voyage, vessel simulates gravity via centripetal force due to spin about its longitudinal axis (same as asteroidal habitats throughout the Solar System).
For final portion of flight, the vessel must use g-force to decelerate for same time/distance as for acceleration phase.

Cruise Profile to Nearest Star
Total DistAccel TimeFinal
Velocity
Accel. distanceCruise distanceCruise timeDecel timeTotal Time
DtAccVFindAccdCrutCrutDecT
LYdaysAU/day% cAULYLYYearsDaysYears
4.3323103.7459.9%19,2710.303.696.163237.93
IV
Given
c[1-(1-Δ)tAcc]
ct+v(t)

ln(1-Δ)
DTtl
- dAcc
- dDec
dCru

VFin
tAcctAcc
+ tCru
+ tDec





Stellar Neighbors.
G-force for a Year. Arbitrarily choose duration of one year for acceleration phase. One year of g-force acceleration brings ship to velocity of .6443 c (observed from Earth). Exhaust particle speed of .99 c and fuel load of .50% TOGW gives ship sufficient range to do this.
DestinationAccel TimeFinal
Velocity
Acceleration distanceCruise dist.Cruise timeDecel timeTotal Time
StarDtAccVFindAccdCrutCrutDecT
NameLYdaysAU/day% cAULYLYYearsDaysYears
 - - -1365.26 111.56 64.43% 23,824 0.38 0.25 0.38 365.26 2.38
- - -2 365.26 111.56 64.43% 23,824 0.38 1.25 1.93 365.26 3.93
- - -3 365.26 111.56 64.43% 23,824 0.38 2.25 3.49 365.26 5.49
 - - -4 365.26 111.56 64.43% 23,824 0.38 3.25 5.04 365.26 7.04
Alpha Centauri 4.365 365.26 111.5664.43%23,8240.38 3.6055.61365.26 7.61
- - -5 365.26 111.56 64.43% 23,824 0.38 4.25 6.59 365.26 8.59
Barnard's
Star
5.97365.26 111.5664.43%23,824 0.38 5.218.09365.26 10.09
- - -6 365.26 111.56 64.43% 23,824 0.38 5.25 8.14 365.26 10.14
 - - -7 365.26 111.56 64.43% 23,824 0.38 6.25 9.70 365.26 11.70
Wolf7.786 365.26 111.56 64.43%23,8240.38 7.0310.91365.26 12.91
- - -8 365.26 111.56 64.43% 23,824 0.38 7.25 11.25 365.26 13.25
Lalande 8.291365.26 111.5664.43%23,824 0.38 7.5411.70365.26 13.70
Sirius 8.583 365.26 111.5664.43%23,824 0.38 7.8312.15 365.26 14.15
Luyten 8.728 365.26 111.5664.43%23,8240.38 7.9712.38365.26 14.38
 - - -9 365.26 111.56 64.43% 23,824 0.38 8.25 12.80 365.26 14.80
 Ross 9.681 365.26 111.5664.43%23,824 0.38 8.93 13.86365.26 15.86
 - - -10 365.26 111.56 64.43% 23,824 0.38 9.25 14.35 365.26 16.35
OBSERVEDGivenc[1 - (1 - Δ)tAcc]
ct +v(t)

ln(1-Δ)
DTtl - dAcc - dDecdCru

VFin
tAcctAcc + tCru + tDec
Definitions
1) D is observed or given distance from our star, Sol, to destination
2) tAcc is duration of acceleration  from departure till start of cruise. This case study chooses one year (365.26 days) for all destinations.
3) Δ - Daily difference in spaceship's velocity is due to acceleration caused by constant g-force. We approximate this value:
Δ = 86,400sec/day × g / c = .2826% c/day
g = 9.8065 m/sec² & c = 299,792,458m/sec
4) VFin is final velocity achieved after applying g-force propulsion for given duration (tAcc).
---VFin is the max velocity achieved during the flight.
---VFin is also cruise velocity; for this case study, it is .6443 c for all examples.
5) dAcc is acceleration distance; this case study uses .38 LY for all examples.
1 light year (LY) = 63,241 AU
6) dDec is deceleration distance, distance needed to slow down from max velocity to operational velocity at destination. Same distance as acceleration distance (.38LY).
7) dCru is cruise distance; total dist. (D) minus dist. for acceleration (dAcc) and deceleration (dDec).
8) tCru is cruise time as observed from the Earth.
9) tDec is deceleration time. Given consistent g-force, assume deceleration time equals acceleration time.
10) T is total time: acceleration + cruise + deceleration.
SUMMARY
AXIOM. Light speed is absolute and puts limits on interstellar travel. Even at light speed, interstellar flights take years for photons, virtually massless particles. Since human spaceships will contain large quantities of mass, the best we can hope for is to approach light speed; we can never attain it and certainly never surpass it.
ASSUMPTION-1. Self Contained Fuel. Prior to departure, notional spaceship will collect and carry sufficient fuel for planned propulsion durations: acceleration (tAcc) and deceleration (tDec).
ASSUMPTION-2. Earthlike Gravity. We currently know two methods to achieve Earth like gravity on an interstellar vessel.
1) Constant G-force Acceleration. If an onboard propulsion system can increase ship's velocity by 9.80665 m/s for every second of "powered" flight'; then, ship's contents will feel a force equivalent to Terran gravity.
2) Centrifugal Force. During non-powered cruise phase, the g-force alternative is a carefully controlled spin to generate g-force by 'pressing' contents against the inside of the outer hull. If ship was cylindrical in shape and rotated around its longitudinal axis; spin rate (degrees per second) will be inversely proportional to radius (as cylinder size increases, less spin rate is needed to maintain centripetal acceleration of 9.80665 m/s/s).
ASSUMPTION-3. Three Phases. Initial calculations indicate that a vessel powered throughout entire interstellar voyage could easily consume fuel greater than ship's total mass. Thus, TE assumes following flight profile.

 Acceleration Phase. Ship starts off trip by accelerating at g-force for 365.26 days, this will bring it to a velocity of .6443c (64.43% of light speed). Occupants will feel a gravity like force drawing them back to departure.

Cruise Phase. Due to fuel considerations, ship will stop propulsion after 1 year and lose g-force from back of ship. Thus, ship will maintain constant velocity of 64.43c for entire cruise phase (majority of voyage). To maintain Earth like gravity, ship will then have to reconfigure to gain g-force against inside of outer hull by starting sufficient spin to gain g-force.

Deceleration Phase.  For 1 year prior to arrival at destination, ship will end this trip by slowing down from 64.43% c at same g-force rate of acceleration phase.










VOLUME I: ASTEROIDAL
VOLUME II: INTERPLANETARY
VOLUME III: INTERSTELLAR
